1332559 Marathon Special Products

  • 133x559

Power Distribution Blocks

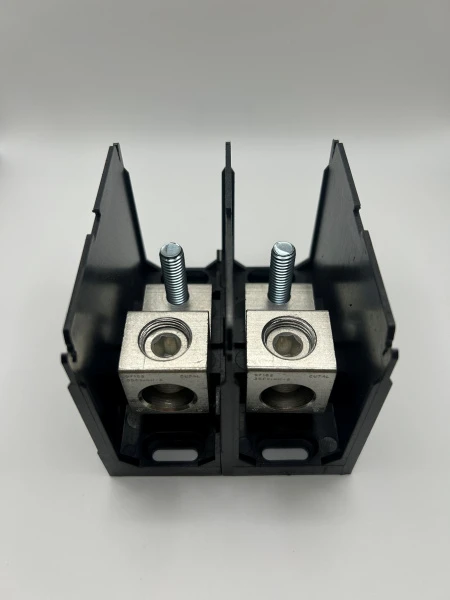

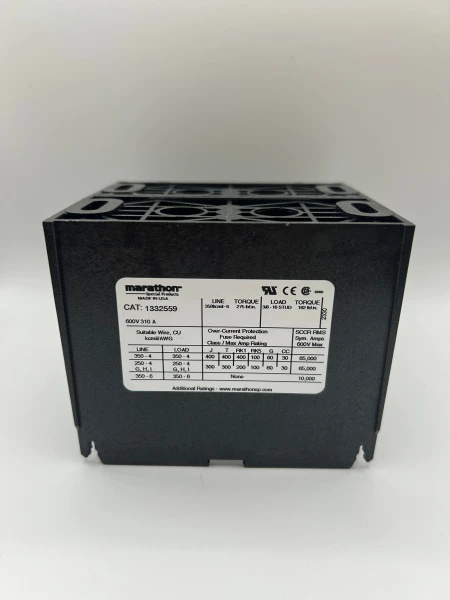

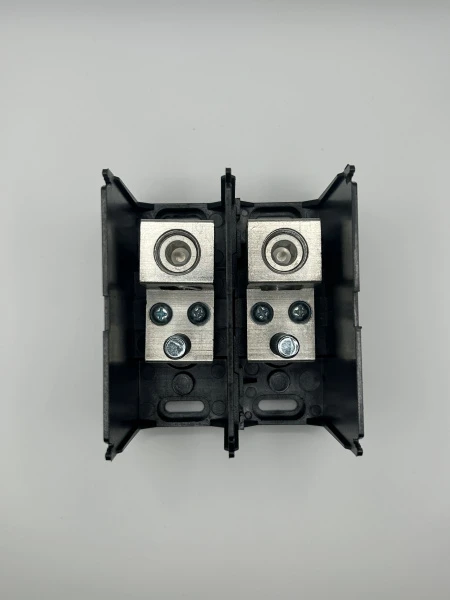

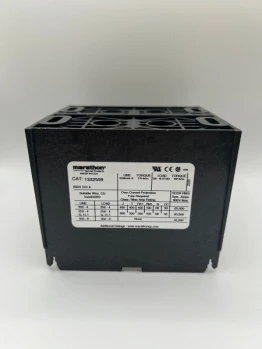

Power distribution block

Marathon Special Products terminal blocks are high-quality, reliable electrical components used to secure and organize electrical wiring in various industrial, commercial, and residential applications. These terminal blocks are designed to simplify wiring connections, provide electrical safety, and enhance the efficiency of electrical systems. Marathons 1332559 is a distrubtion block with 1 in and 1 stud out. It has a wire range on the line side is (1) 350kcmil - #6 AWG and on the load side is 3/8 X 16 X 1 1/4  stud. It is rated for up to 310A and 600V. The terminal block is rated 10,000A short circuit current. The insulation material is thermoplastic and connector is aluminum, tin plated. This 1332559 distribution block is RoHS complaint.

1332559 Specifications

  • Wire Range: Line: (1) 350kcmil - #6 AWG, Load: 3/8 X 16 X 1 1/4
  • Color: Black
  • Material: Thermoplastic
  • Current Rating: 310A
  • Voltage Rating: 600V
  • Number of Poles: 2
  • Termination Type: Screw, Stud
  • RoHS: Yes
  • Manufacturer: Marathon
  • Part Number: 1332559
  • Alternate Part #: 1332559
  • UPC: 784337 33259

1332559 Features

  • 600 Volt
  • ROHS Compliant
  • Screw Type

1332559 Technical Resources

In-Stock Qty: 130

145.24
Quantity:
QuantityPrice
5+$145.24
8+$94.54
16+$64.39
32+$60.45
64+$58.48
128+$55.61

Call for Availability - 913-362-4248

Call for Availability

913-362-4248
